MDoG-6002-DA-1X8-12G

1x8/2x4 12G-SDI Reclocking Distribution Amplifier

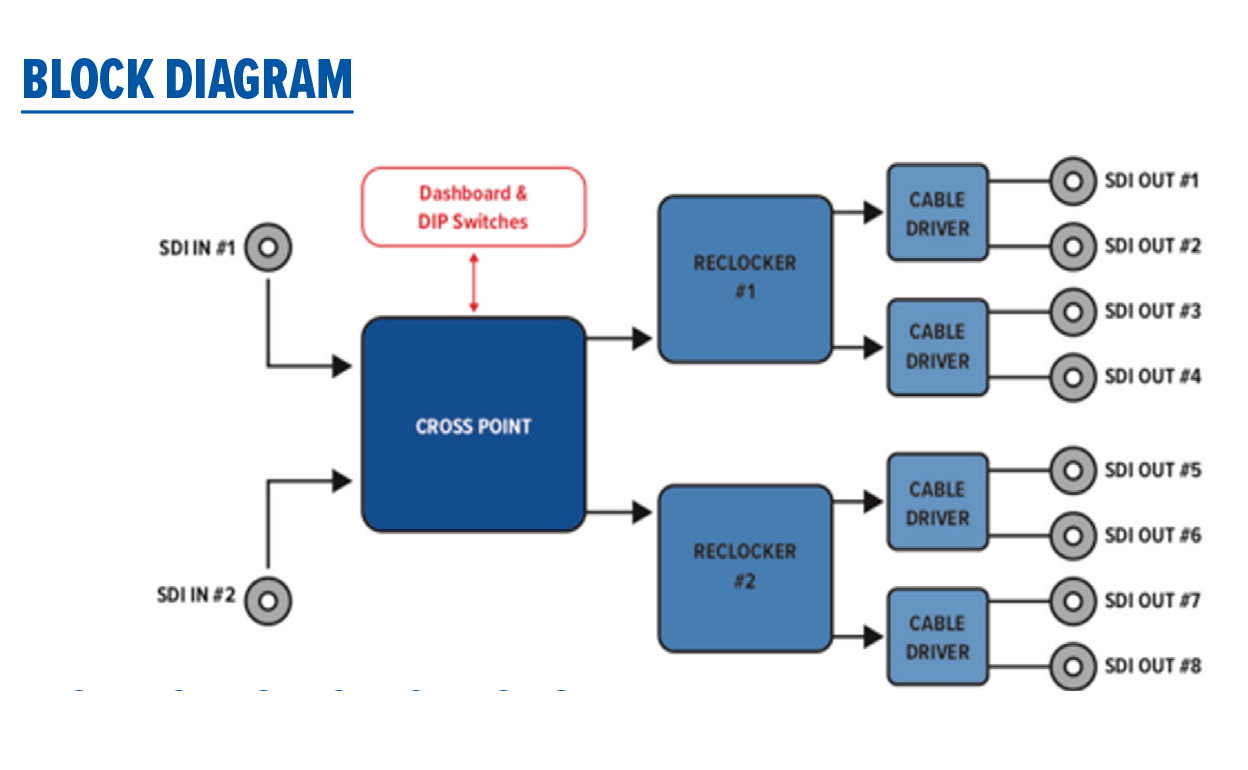

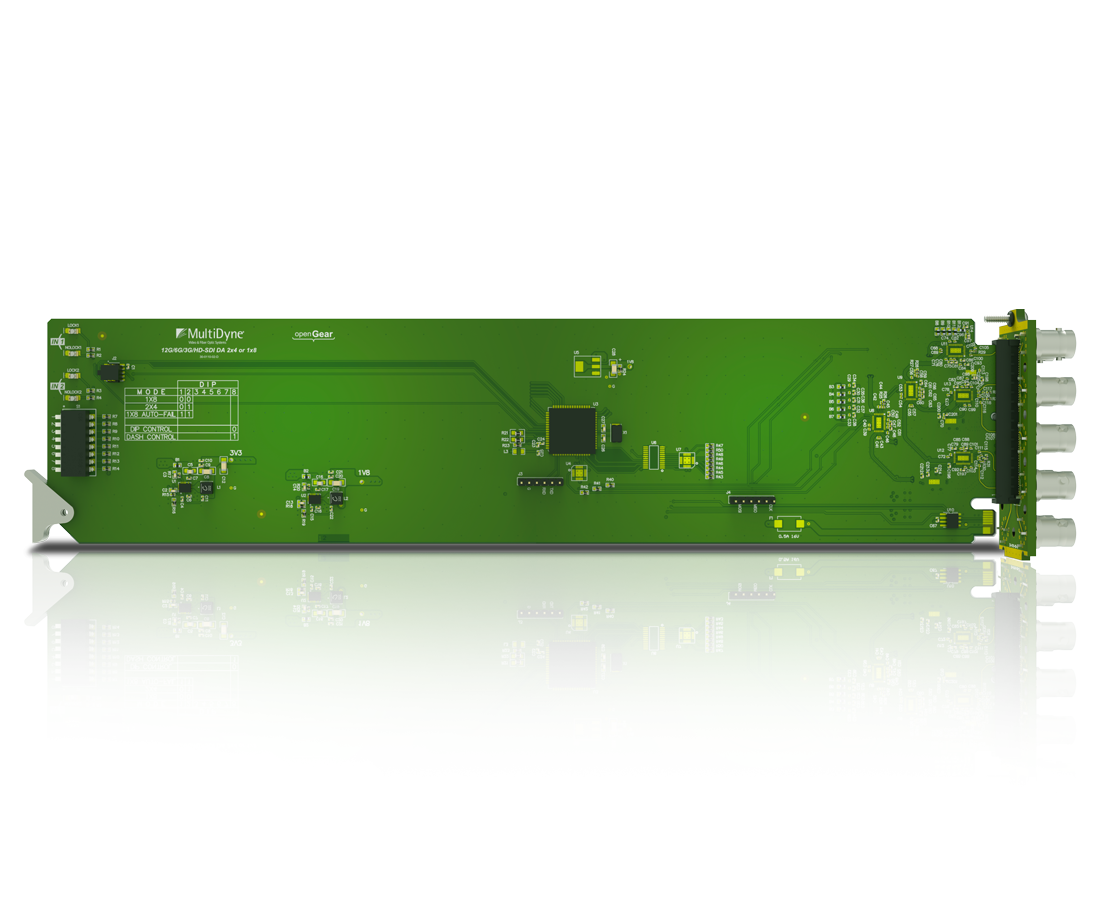

The MDoG-6002 is a 12G-SDI Reclocking Distribution Amplifier designed for the award winning openGear platform.  The unit can be configured as a 1x8 or dual input 2x4 operation.

The MD0G-6002 utilizes adaptive cable equalization and automatic reclocking to reliably recover 12G-SDI input signals with cable runs up to 50M in length.

When using the MDoG-6002 with dual inputs the unit can operate in A/B failover mode.  This provides the ability to switch between a primary and backup signal in the event of signal loss.

For mission critical signals, combine the A/B failover mode with the relay bypass rear module for added protection.  In the case of power failure to the frame or the card has been pulled from the front the unit will route either input 1 or 2 to the relay bypass output. This will provide continuity to downstream equipment.

There are several rear module options with full size BNCs to accommodate one or two cards, as well as a relay bypass option.

For applications with higher density and channel counts an HD-BNC rear module accommodates 2 cards.  Each card can operate as 1x7 or 1x4/1x3.  This allows for up to 20 cards per frame with up to 40 inputs and 140 outputs in 2 RU.

The MDoG-6002 uses openGear Dashboard for remote control and monitoring as well as firmware upgrades.
