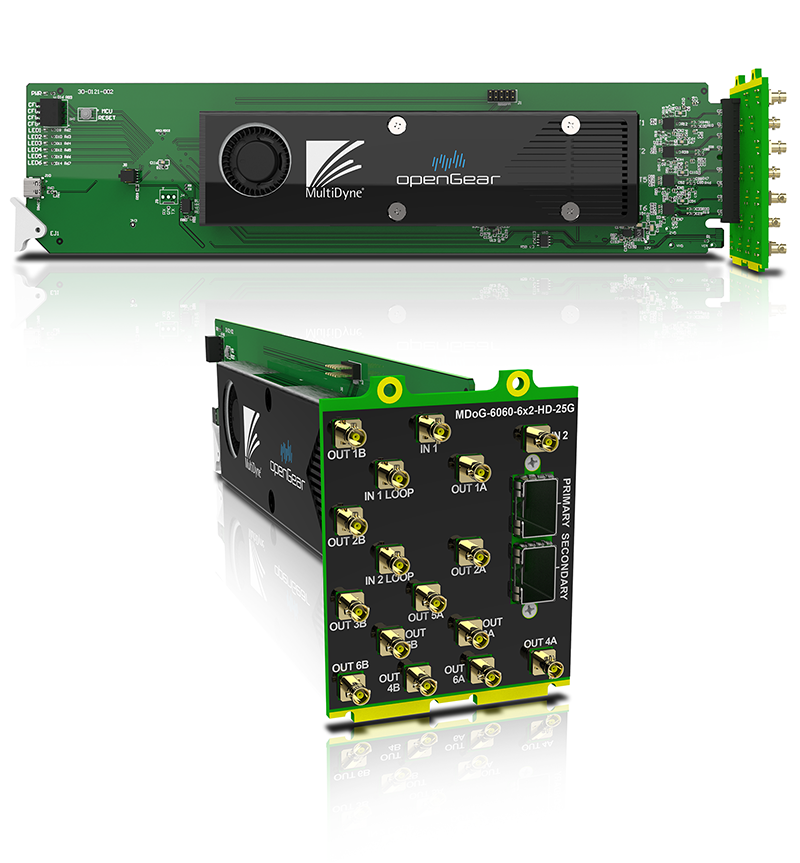

MDoG-6060 Series

ST2110-20 Encapsulator / De-encapsulator

The MDoG-6060 Series from MultiDyne provides advanced SDI-to-ST2110 encapsulation and ST2110-to-SDI de-encapsulation within the award winning openGear platform. This series supports multichannel, bi-directional conversion between SDI and ST2110, offering a range of configurations, including 3x3 3G-SDI with dual 10 GbE SFPs and 6x2 3G-SDI with dual 25 GbE SFPs. Full support for ST2022-7 hitless redundancy ensures uninterrupted signal integrity in critical applications.

Each channel within the MDog-6060 Series processes:

• One video flow

• Four audio flows (each supporting up to 16 audio channels)

• One ANC data flow

SDI inputs are frame synced prior to encapsulation, ensuring seamless integration into IP workflows. For applications requiring TR-08 JPEG-XS compression, the MDoG-6061 builds upon the capabilities of the MDoG-6060, delivering enhanced functionality to address bandwidth efficiency and high-quality video compression requirements.

The MDoG-6060 utilizes NMOS for in-band control and configuration, coupled with the openGear DashBoard™ for remote monitoring and firmware upgrades, ensuring ease of use and adaptability to existing network infrastructure.

The MDoG-6060 Series is designed for scalability, reliability, and flexibility, making it the ideal choice for modern broadcast and production environments where seamless transitions between SDI and IP-based workflows are essential.
