OG-5310-ADA

Provides 1x8 distribution with one analog input and eight 75Ω analog outputs.

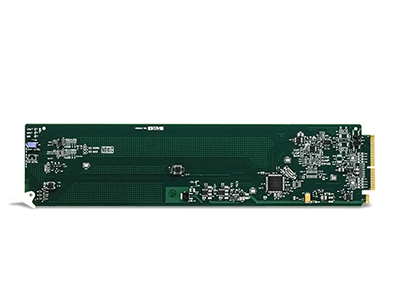

The OG-5310-ADA Analog Video Distribution Amplifier provides 1x8 distribution with one analog input and eight 75Ω analog outputs. Card jumpers allow setting the input as differential (floating ground) or single ended, and Hi-Z looping input or on-card 75Ω terminated. A trim control located on the front of the card allows gain control. The card can be accessed using DashBoard™ remote control for status monitoring.

• Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
• Remote control monitoring via DashBoard™ software
